Scalable architecture
With three cabinet sizes available in numerous configurations, KEYper MXu works for any organization and can easily scale to meet the growing needs of your business.
Introducing KEYper MXu Key Cabinets
KEYper MXu is the latest addition to our key and vehicle management solutions, seamlessly integrating with existing 16-bit Traka systems deployed in the U.K. The system provides fast, automated key access to authorized users only, while maintaining a detailed audit trail of every key transaction. KEYper MXu is a comprehensive solution for managing your entire key inventory, bringing enhanced security, visibility, and efficiency to your business, and ensuring total accountability for your staff.
See How it Works
See the simple and convenient experience your staff will have when using the KEYper MXu system.
- Quickly authenticate via PIN, proximity card, or fingerprint
- Locate assets in seconds using convenient search and filter functions
- LED indicators guide the user to the correct key within the cabinet
- Close the door and the transaction is recorded for total accountability
Integrate MXu cabinets with your existing 16-bit Traka systems for a seamless solution!

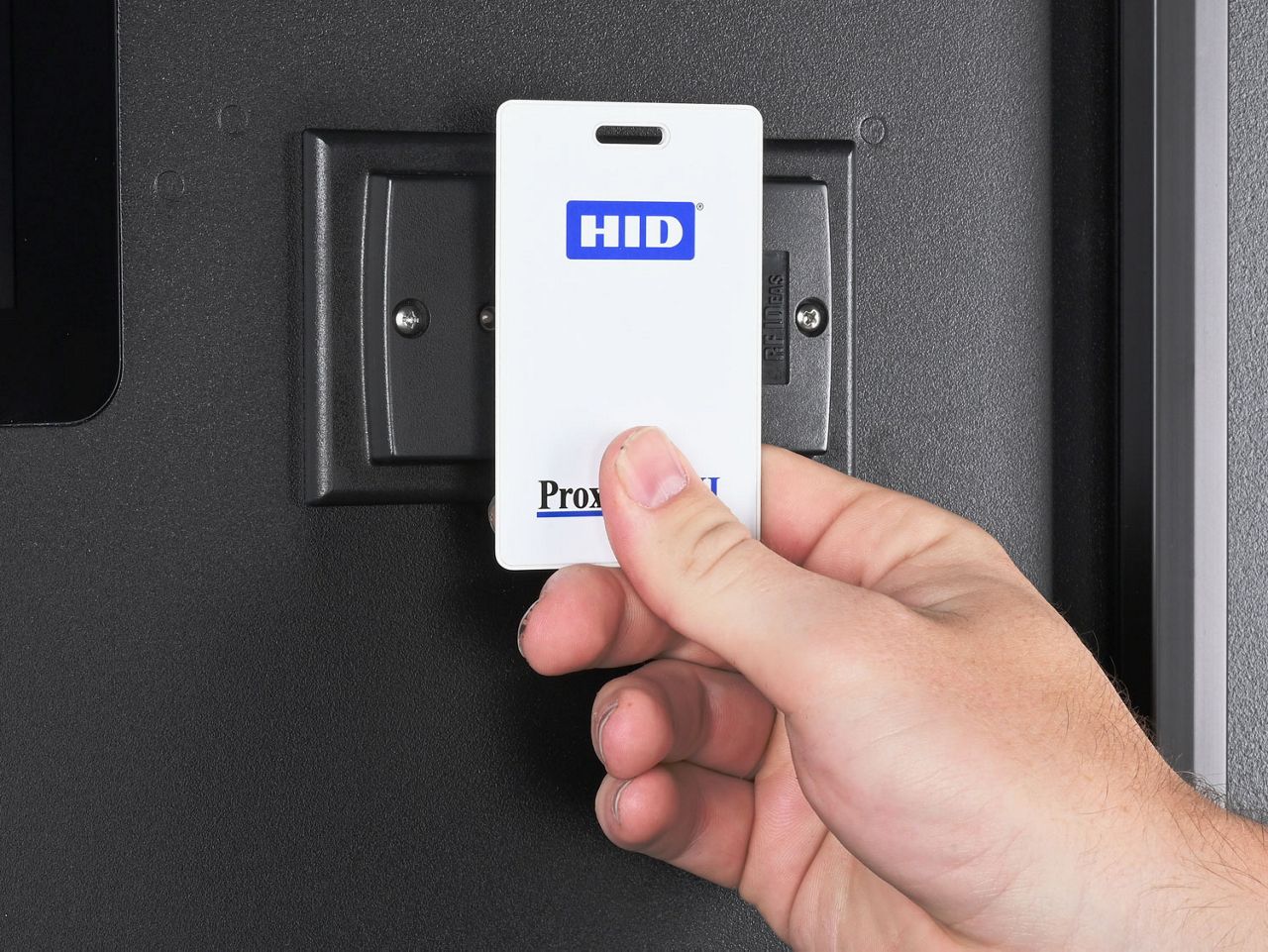

Flexible authentication
Use existing card credentials for convenience, the biometric fingerprint reader for increased security, or assign a unique PIN code to meet temporary access needs.

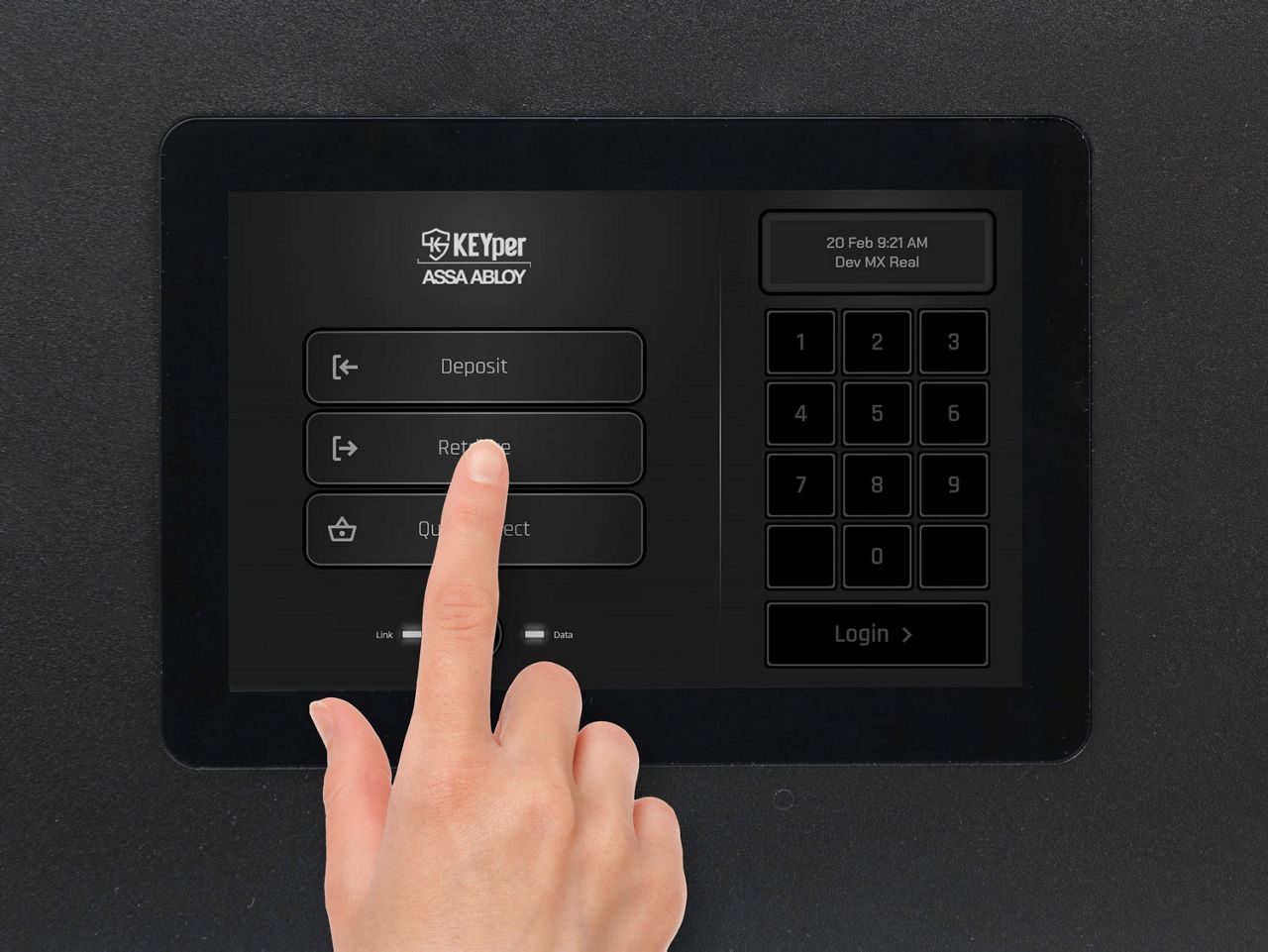

Intuitive touchscreen
The cabinet software is uniquely designed for the workflows of the automotive industry to deliver a fast, simple, and enjoyable user experience for your staff.
Improved parking locations
KEYper MXu allows users to input a vehicle's parking location when returning a key to the cabinet, so the next driver will know exactly where to find it.

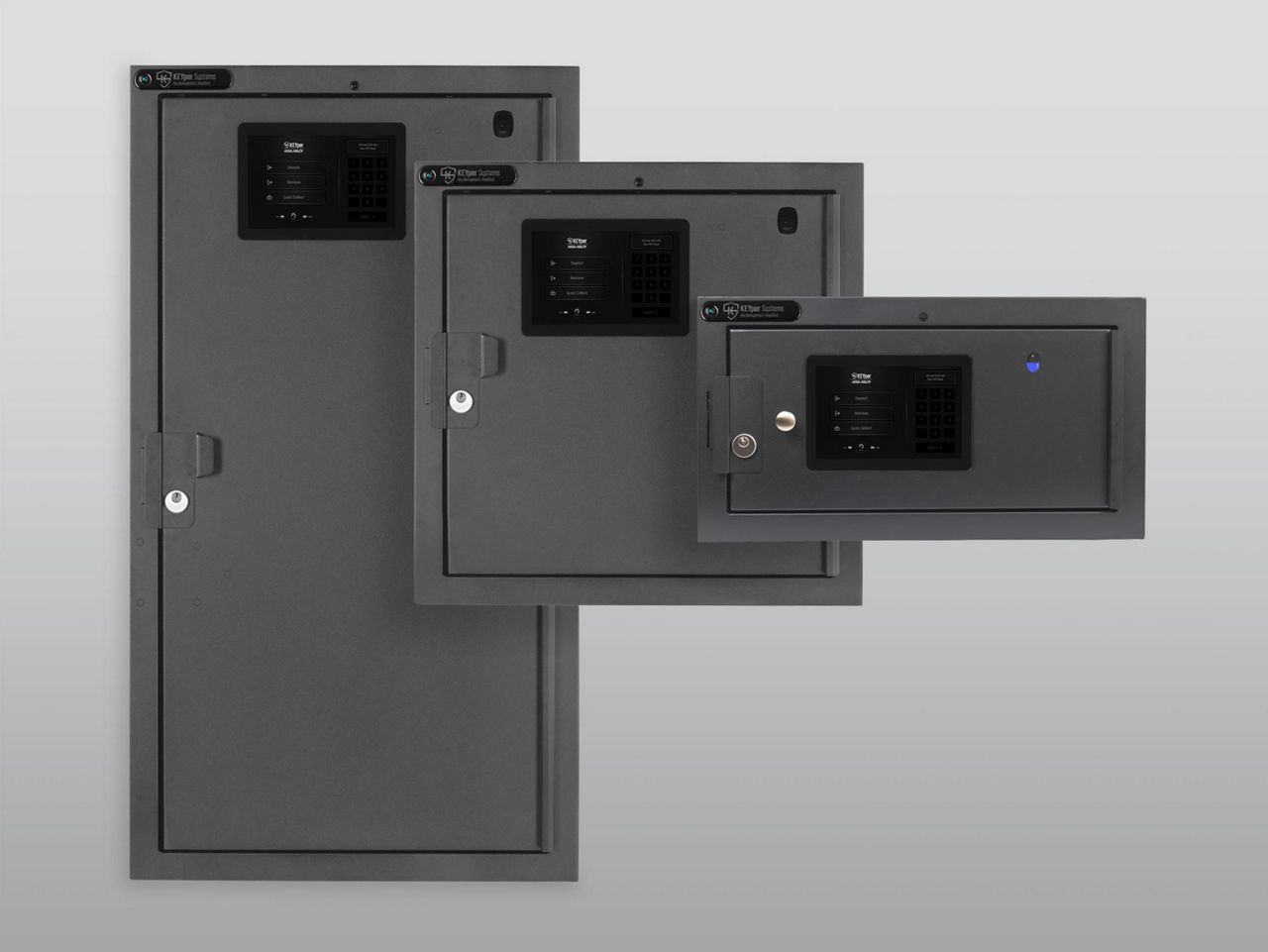

Three Cabinet Options for Any Application

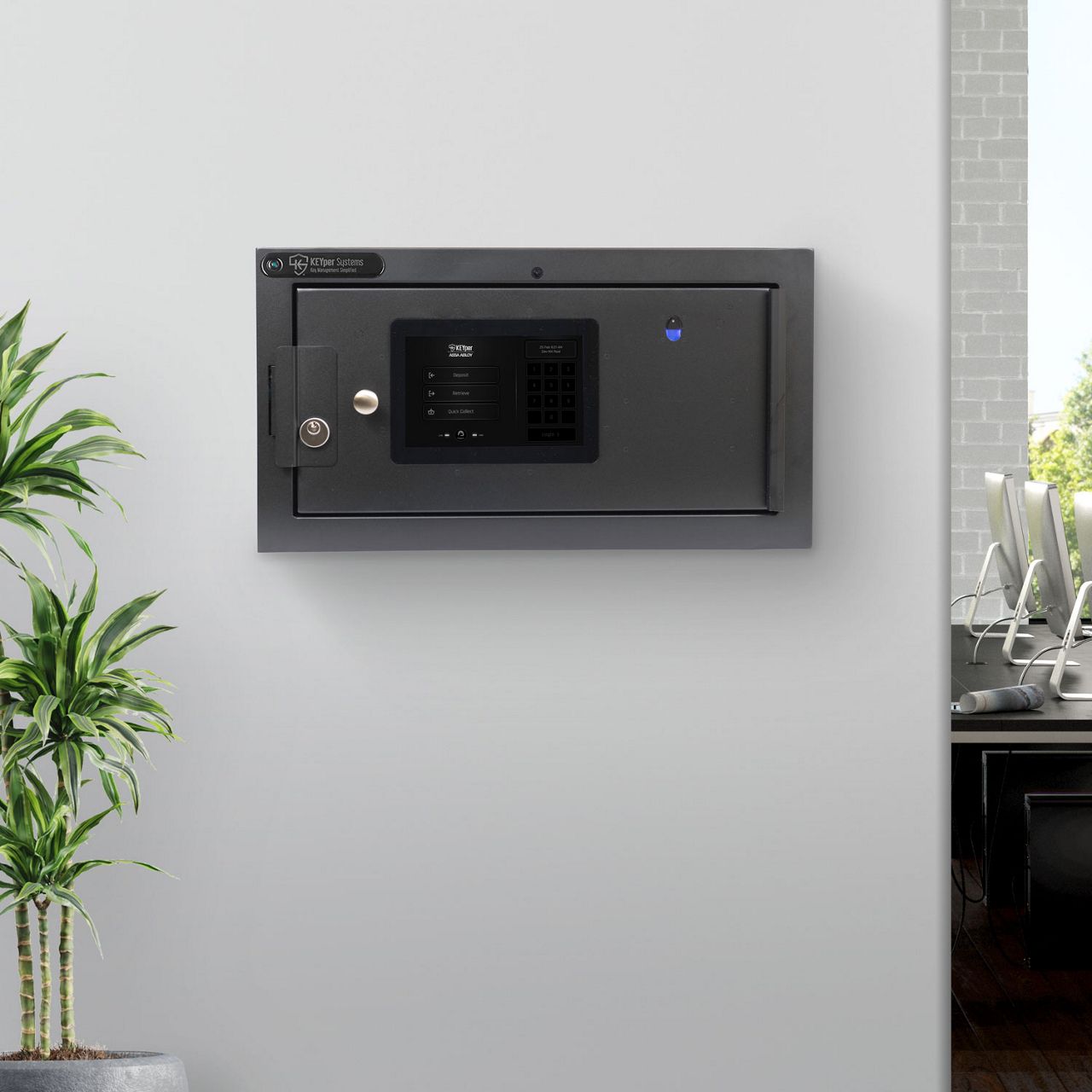

KEYper MXu Mini
Key positions: 32
Dimensions (H/W/D in mm):
Cabinet: 381 x 686 x 318
Wall mounted: 451 x 737 x 330Cabinet weight: 27.2 kg

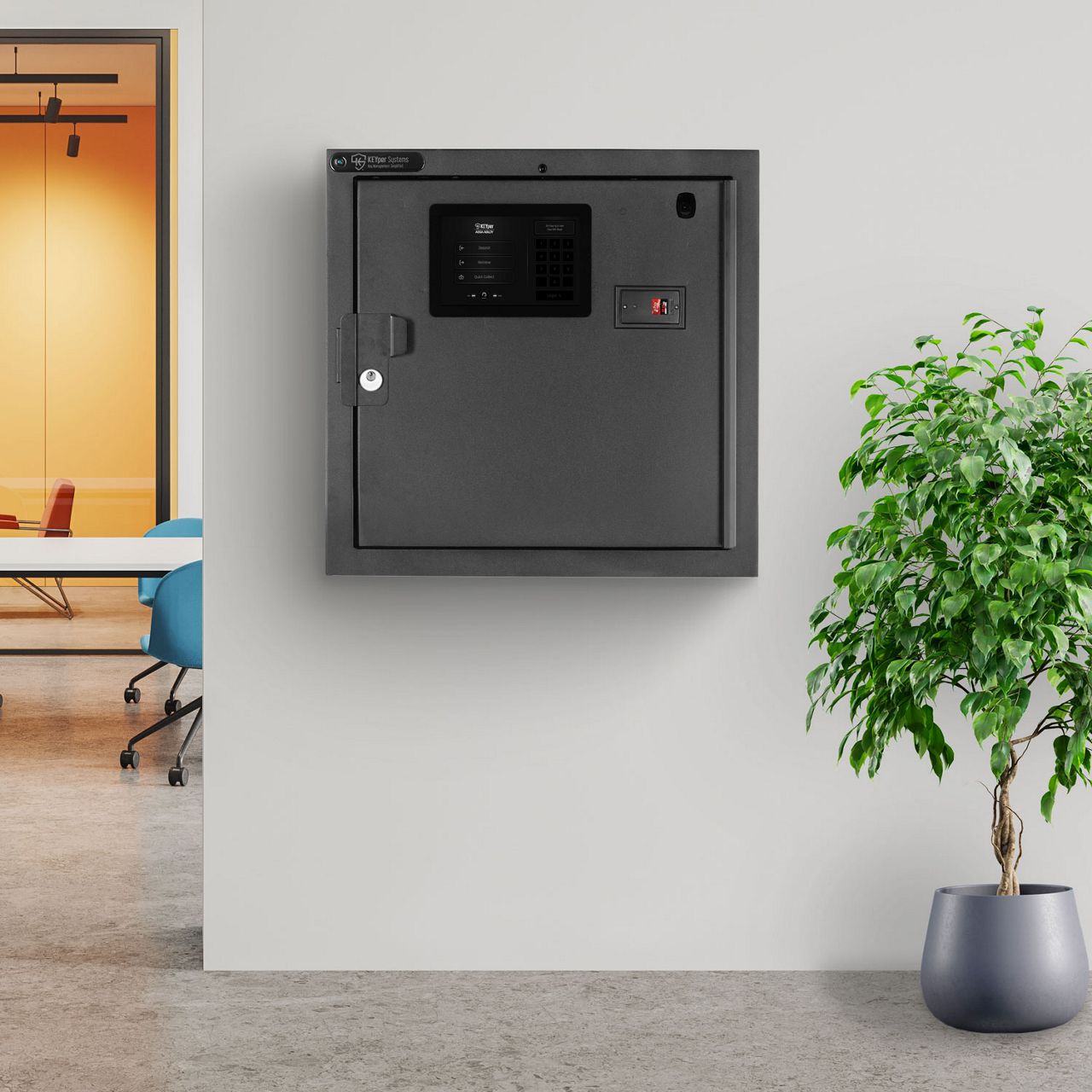

KEYper MXu Standard
Key positions: 32-128
Dimensions (H/W/D in mm):
Cabinet: 635 x 686 x 318
Stand mounted: 1750 x 686 x 318Cabinet weight: 40.8 kg
KEYper MXu Large
Key positions: 32-288
Dimensions (H/W/D in mm):
Cabinet: 1245 x 686 x 318
Stand mounted: 1750 x 686 x 318Cabinet weight: 69.9 kg

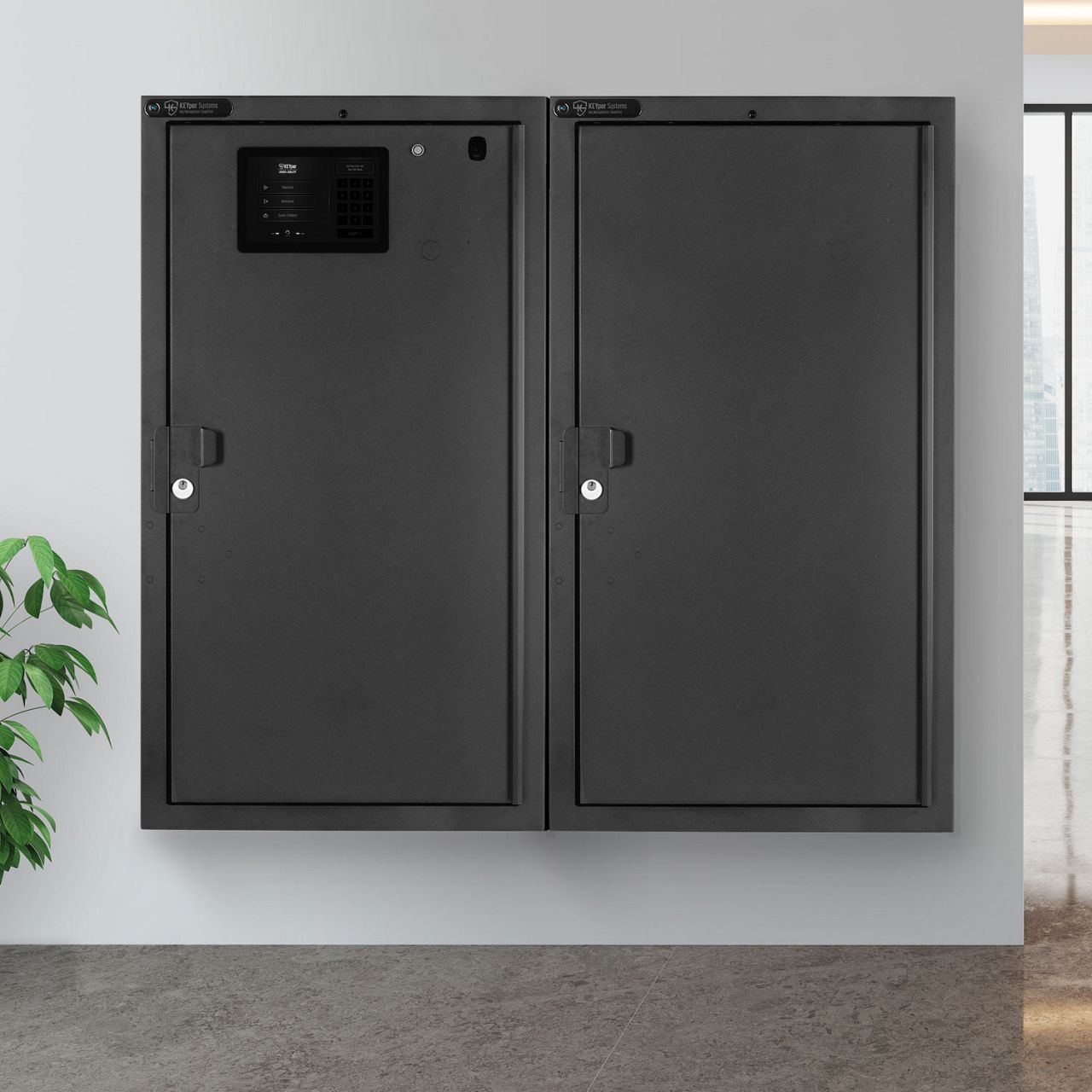

Add-on Cabinets
While multiple MXu systems can be networked for decentralised management of assets, Standard and Large cabinets can also leverage Add-on Cabinets to increased the capacity of a single system.
Material
Cabinet and door material: Powder-coated, 16-gauge steel
Color: BlackElectrical
Power supply: Input: 100-240V AC, Output: 12V DC
Power consumption: 30W max.Environmental
Operating temp.: Ambient, for indoor use only (–5C to 40°C / 23°F to 104°F at 95% non-condensing relative humidity)Network & connectivity
User per system: 65,000
Communications: Ethernet
Reader interface: IDEMIA biometric readerAdministration software requirements
Supported platforms: Windows Server 2016, 2019, 2022; Windows 10, 11
Database: SQL Express 2014, 2016, 2019; SWL Express 2022Conformity & standards
Certifications: UKCA (UK), CE (EU)Check out the latest updates and insights in the new brochure!

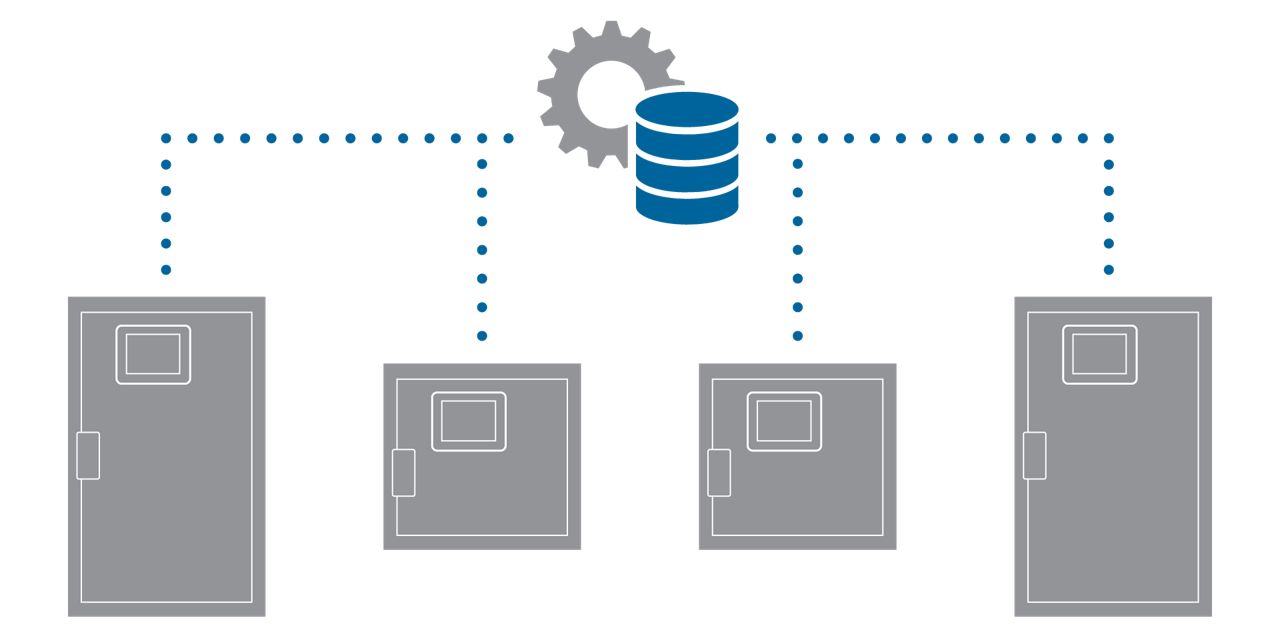

The KEYper Ecosystem
The cornerstone of KEYper's automotive solutions is the ability for your staff to return keys to any key position, in any system, at any location. This means that KEYper can more closely audit vehicle activity as they move throughout your business. Upon keys being returned to a cabinet, both the key and vehicle locations are immediately updated, enabling the next user to find them instantly.
Simple architecture
Designed to operate in all environments, from standlone desktop PCs to virtual servers with mutiple instances of the Traka automotive application.
DMS Integration
Direct integration with popular DMS platforms to synchronise vehicle records, with the ability to interface with bespoke databases to provide real-time key and vehicle information.
Simple Key Management Software
Simple Key Management Software
Our software is designed to require minimal training, with a fluid and easy-to-understand layout that users can get to grips with easily.
The interface and user experience is unmatched by any other solution. When staff need to find a vehicle, they search for it using the Traka software or on the latest KEYper MXu cabinet.
Within milliseconds, staff can see...
- which cabinet holds the key
- the exact position of the key in that cabinet
- where the vehicle is parked on site, or if it is at a different location
Get a Personalised Demo
Contact an automotive specialist today to schedule your demo, and we'll show you how a Traka solution powered by KEYper Systems can deliver immense value to your business.

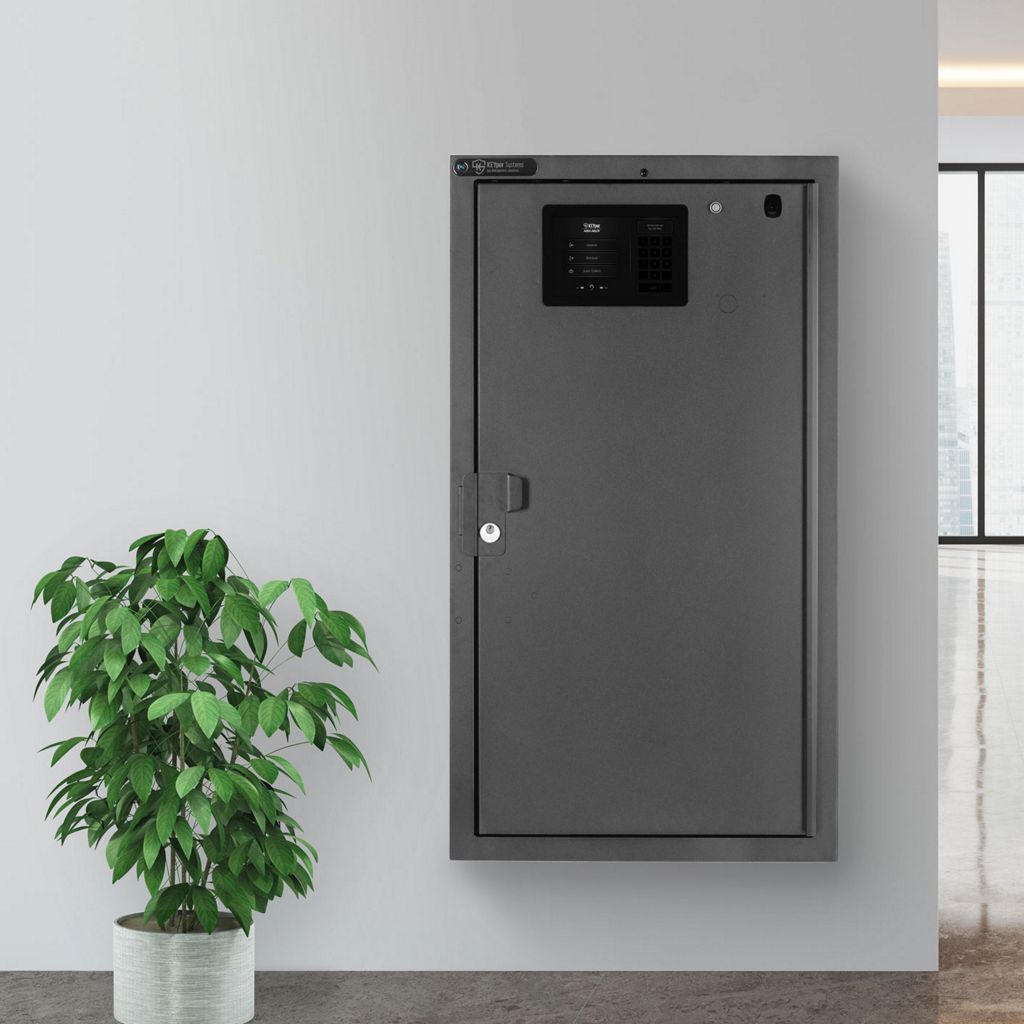

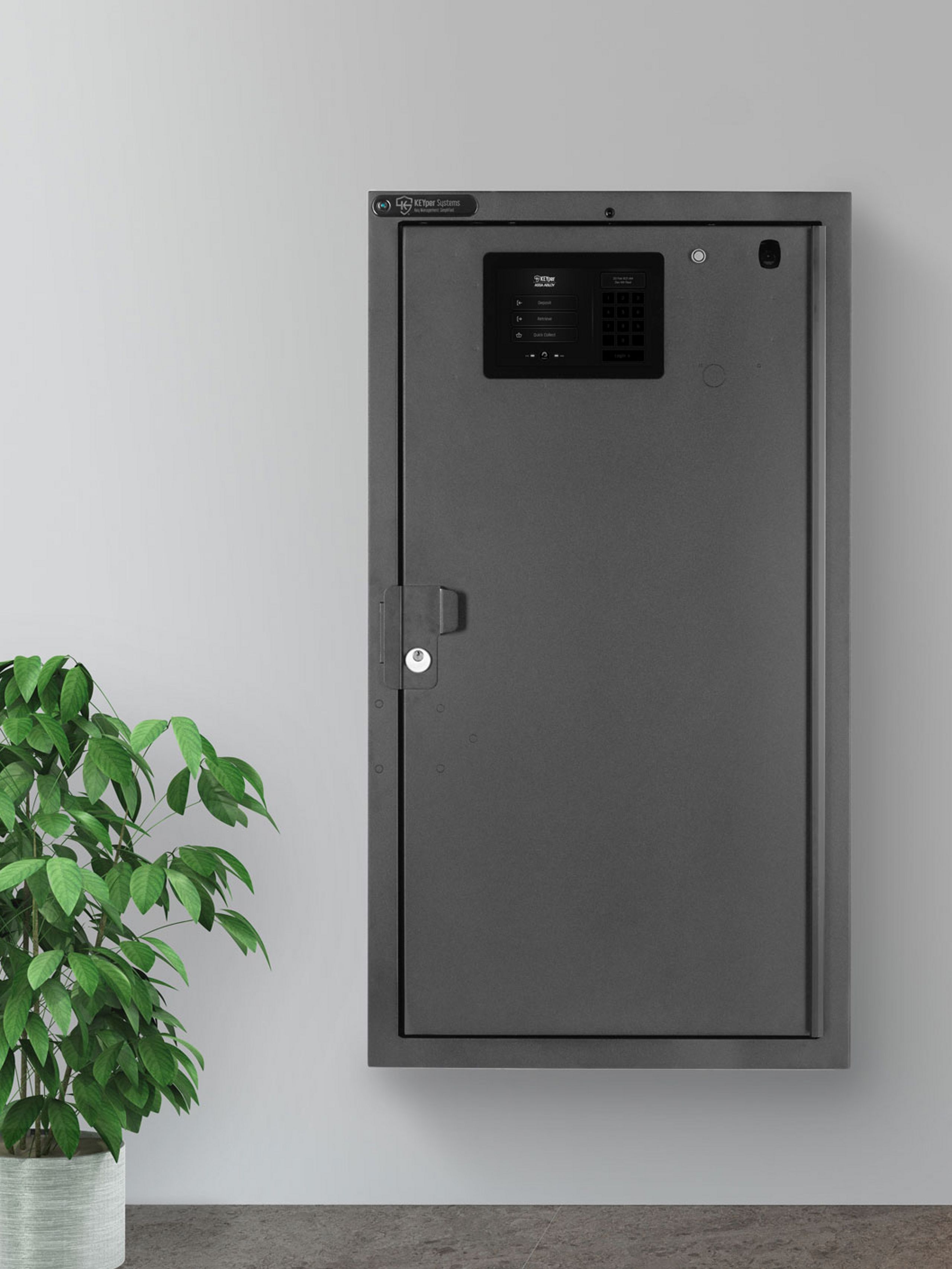

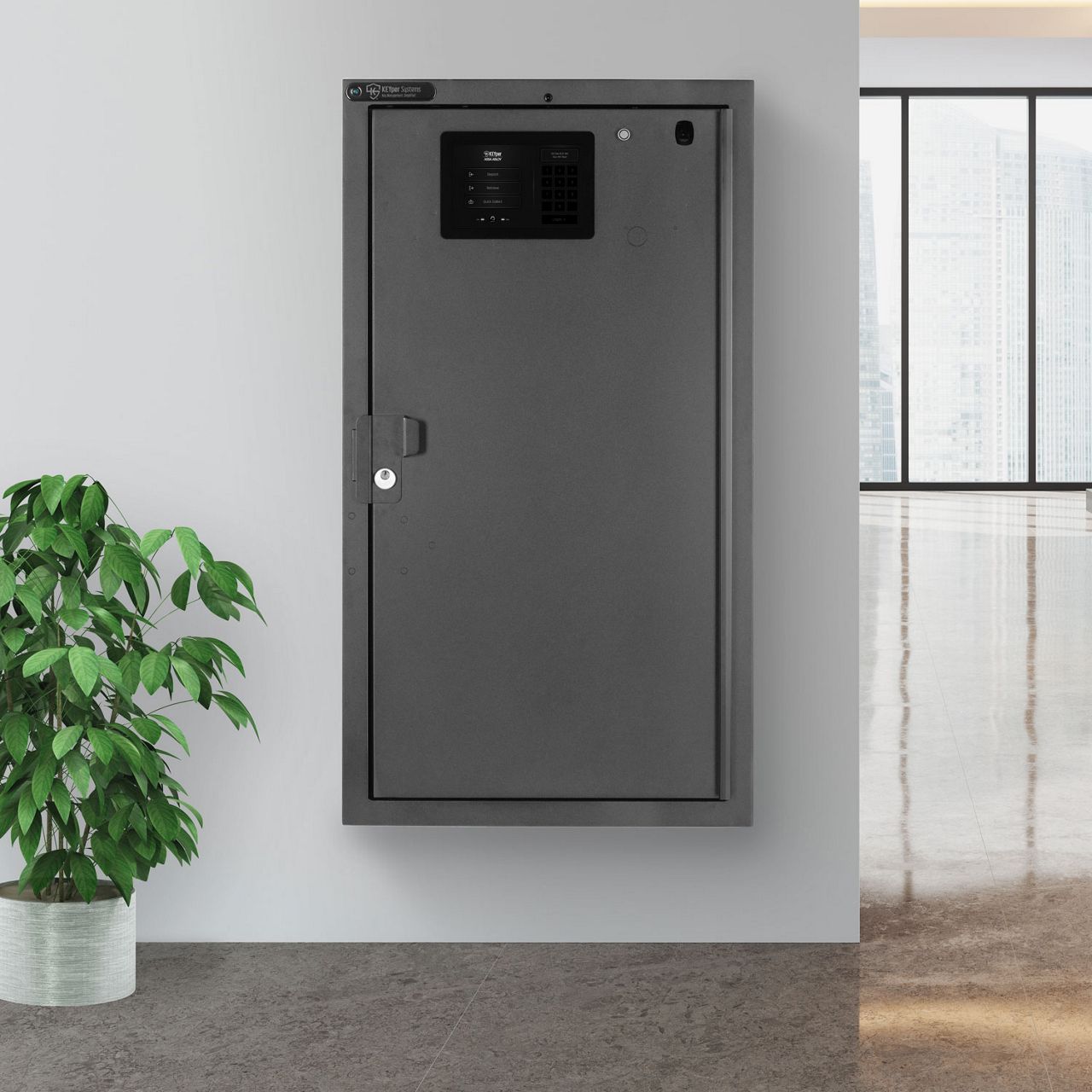

KEYper MXu Large
The KEYper MXu Large key cabinet, capable of holding up to 288 keys, continues the legacy of excellence by combining the US's top automotive key management system with the UK’s premier software.
With its expansive storage capacity, it exceeds the MXu Standard, accommodating a vast array of keys in a single cabinet.
Utilizing Traka’s iFob technology, it seamlessly integrates with existing 16-bit systems, ensuring smooth key transitions.
Enhanced by an intuitive touchscreen interface and advanced software functionalities, including key search and synchronization, the MXu Large sets the benchmark for automotive key management in the UK.
KEYper MXu Standard
The KEYper MXu range of key cabinets combines the number one automotive key management system in the US with the UK’s industry-leading software.
The KEYper MXu Standard key cabinet offers secure storage for up to 128 keys with the ability to increase the capacity in a single interface using add-on key cabinets.
Featuring Traka’s iFob technology, it ensures dealers can effortlessly transition keys between MXu and existing 16-bit systems.
With an intuitive touchscreen interface and advanced software functionalities like key search and synchronization, the MXu Standard is the ultimate solution for automotive dealerships in the UK.
